1080P

S7S

Cover every corner of your vehicle with four independent lenses. 1080P front plus three 480P auxiliary cameras give you complete 360° situational awareness. WiFi and parking monitor make the S7S the ultimate security solution for fleets, RVs, and ride‑sharing.

Manual Download
S7S S7S S7S S7S

GLOBAL IMPACT, PROFESSIONAL TRUST

150+

COUNTRIES AND REGIONS SERVED

5M+

GLOBAL ACTIVE USERS

200M+

HOURS OF ROAD CAPTURED

No.1

4‑CHANNEL 1080P DASHCAM WITH 360° COVERAGE

Performance
Cutting Edge

Unleash Your Potential

Engineered for the extremes, designed for perfection.

1080P + 480P ×3

Main front 1080P recording, plus three 480P auxiliary cameras for cabin, rear, and side views.

Multi‑Angle Lenses

110° front + 80° + 60° auxiliary lenses – capture road, interior, rear, and blind spots.

2.14″ IPS Screen

Compact, bright display for real‑time monitoring of all four channels.

Smart Parking Mode

Temp‑park motion detection and G‑sensor protect your vehicle 24/7.

4‑CHANNEL DASHCAM SYSTEM

Front 1080P, Aux ×3 480P, 110°+80°+60° Coverage

360° FULL COVERAGE

360° FULL COVERAGE

The S7S records the road ahead in 1080P while three additional 480P cameras monitor your cabin, rear window, and side blind spots. The 110° front lens captures wide traffic scenes, and the 80°/60° auxiliary lenses focus on passenger activity, rear collisions, or lane changes. Ideal for RVs, delivery vans, taxis, and fleets that need complete situational awareness.

  • 1080P Front Camera – Clear evidence of road incidents
  • 480P Aux Cameras – Monitor rear seats, rear window, cargo, and sides
  • Independent Four‑Channel Recording – Each lens saves time‑synced files for easy review

PROFESSIONAL FLEET SECURITY

When parked, the S7S’s temp‑park motion detection wakes the system upon impact or movement. The optional G‑sensor automatically locks footage during a collision. Add optional WiFi for wireless preview and download – perfect for fleet managers who need to review four‑channel footage without handling memory cards.

  • Temp‑Park Motion Detection – Activates recording near your parked vehicle
  • G‑sensor (Optional) – Locks critical files on impact
  • WiFi (Optional) – Wireless transfer and live view
PROFESSIONAL FLEET SECURITY

ADAPTIVETONE

No more overexposed windshields or dark interiors across four cameras.

Quad‑Lens HDR independently balances exposure for the front and all auxiliary cameras, ensuring the road, cabin, rear, and sides remain clear – even in challenging backlight or night conditions. All four channels are time‑synced for seamless evidence.

FRAME RATE

BE A 4‑CHANNEL PRO WITH 1080P/30FPS + 480P/25FPS

Record the road in smooth 1080P at 30fps while three auxiliary cameras capture at 25fps. Each channel is independently saved and time‑synced, giving you complete 360° evidence for insurance, disputes, or fleet analysis.

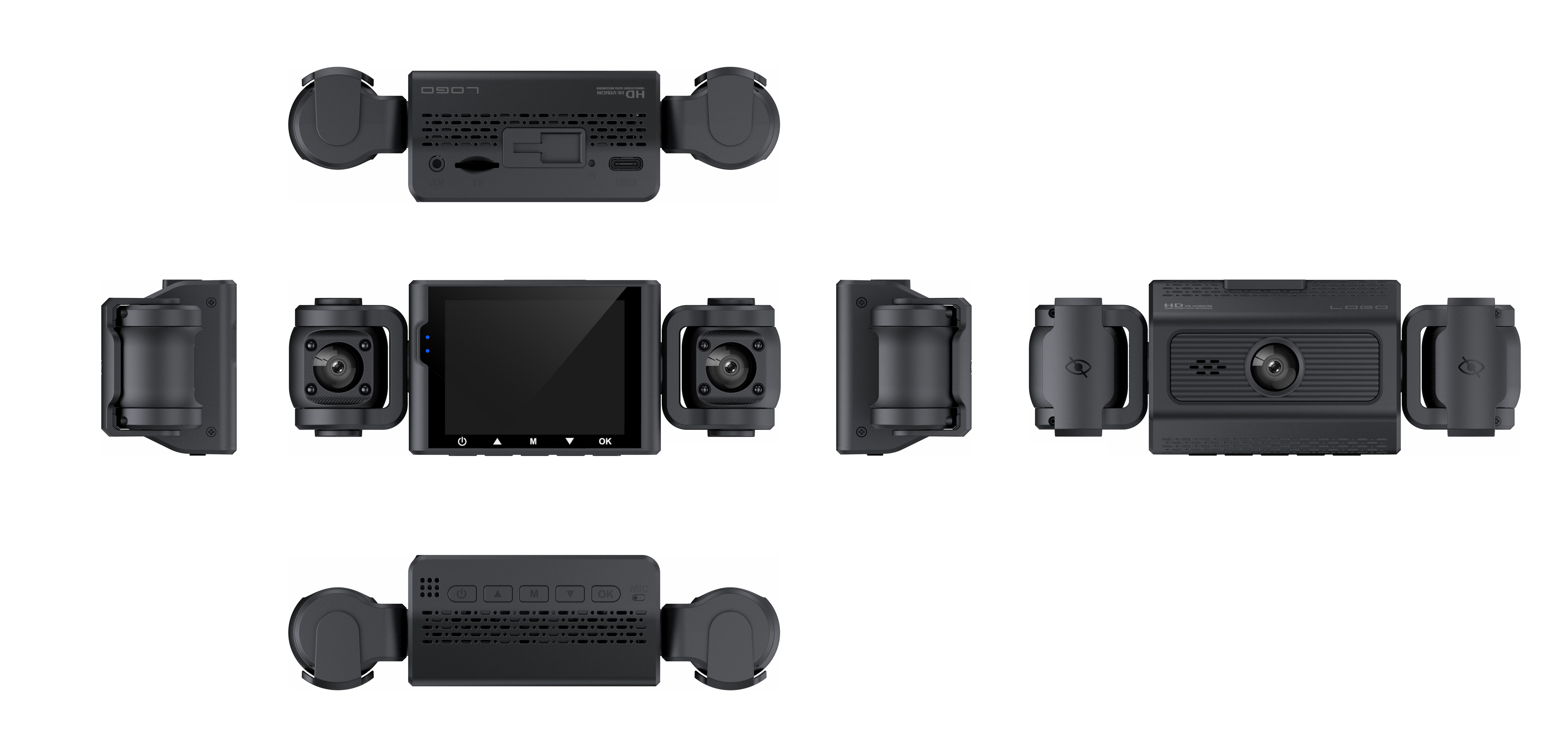

Product Details

Masterfully crafted for every dimension.

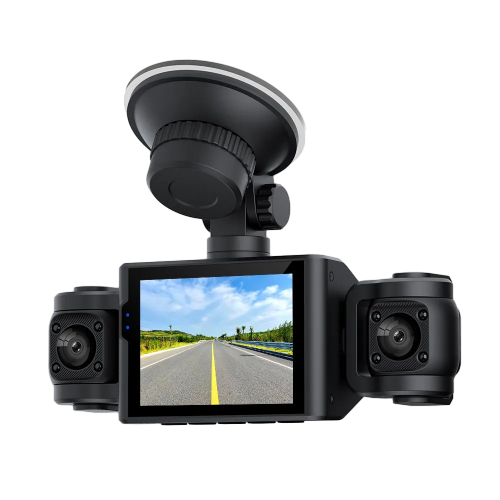

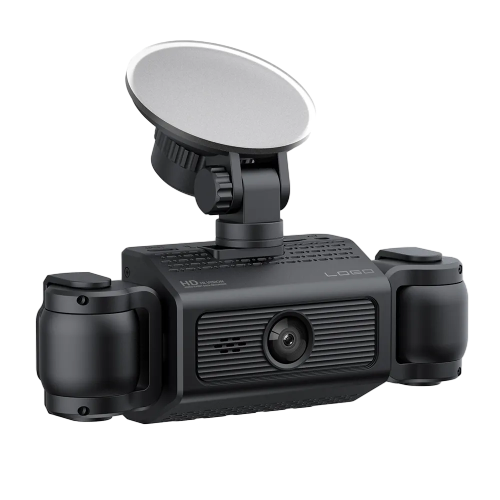

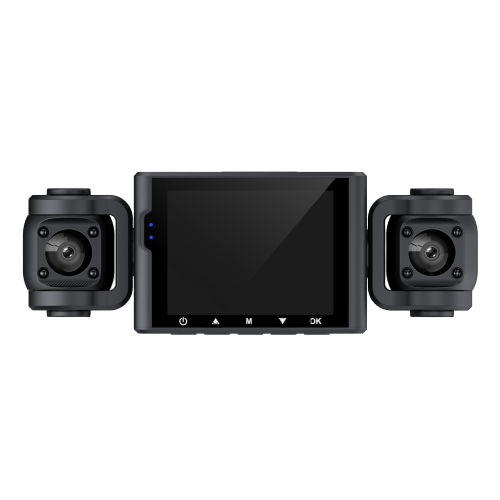

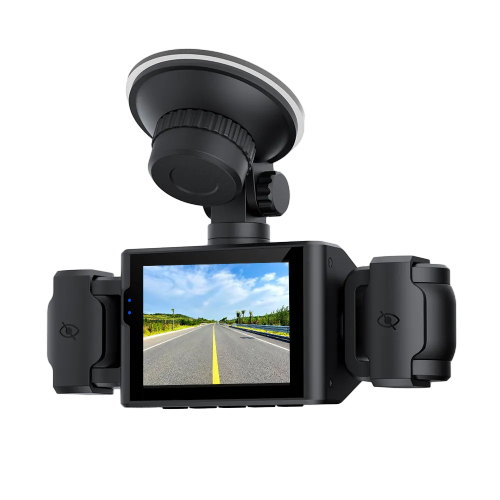

S7S Front ViewFront

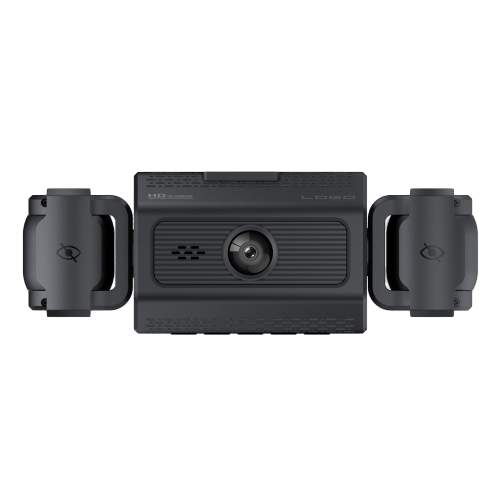

Back

Tech Specs

Detailed specifications for the S7S.

Screen
2.14″ IPS
Video Resolution
Main: 1080P (1920×1080) Aux 1: 480P Aux 2: 480P Aux 3: 480P
Lens Angle
Main: 110° / Aux 1: 80° / Aux 2: 60° / Aux 3: (not specified, assumed 60° or similar)
Night Vision
Supported
WiFi
Support / Optional
Cycle Recording
Supported
Temp‑Park Motion
Supported
G‑sensor
Support / Optional
Motion Detection
Support / Optional
Memory Card
Supports 16G/32G/64G (optional)
Power Interface
5V‑1.5A
Working Temperature Range
-20° to +70°C
Battery
150mAh (for parking mode and saving last file)
Current Frequency
50/60Hz
Language
Multi‑language
Service Support
OEM / ODM

OEM / ODM SERVICES

BESPOKE SOLUTIONS & CUSTOMIZATION

Leverage our advanced manufacturing ecosystem. We transform your unique vision into market-ready technology with precision-engineered flexibility.

Light Customization

Rapid brand integration through logo application and customized packaging solutions. Ideal for established brands scaling quickly.

Branding Tiers

Drawing-Based

Turning your blueprints into reality. We implement complex CAD designs into high-performance physical hardware with exacting standards.

CAD Integration

Sample-Based

Precision reverse engineering and refinement. Provide your physical prototypes, and we will replicate or enhance them for mass production.

Reverse Engineering

Full Scale Customization

Comprehensive end-to-end development. From initial concept research to hardware design and full-scale manufacturing leadership.

Full ODM Cycle

Contact Us

Start Your Project With Us

Have a specific customization requirement or a global business inquiry? Send us a message and our expert technical team will reach out within 24 hours.
